Extracting map

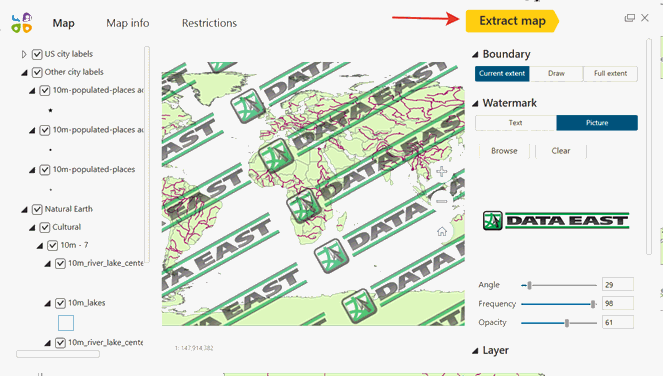

So, as all settings for your future mobile map have been specified, you can move to extraction process. To do so, press Extract map button.
|
In Summary window review the information about your map: output file location, protection settings, boundary and map name. Press Start extraction if everything is OK.
|
The process of extraction of project to mobile map in CMF2 format will start. To cancel process, press Cancel .
|

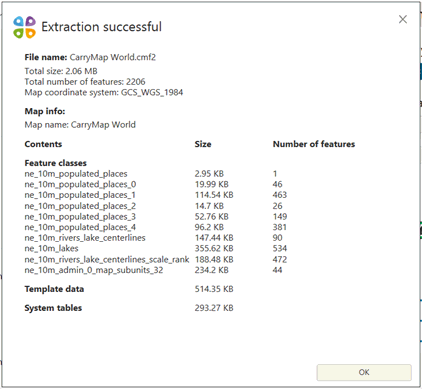

Upon extraction completion, the following dialog will appear.
|
Besides, you will see the summary report about created mobile map showing the output file size, feature classes and number of features, coordinate system, etc.
|
