Selecting layers to be extracted to map

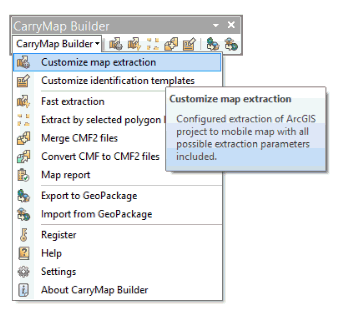

To select ArcMap layers that need to be extracted to mobile map, press Customize map extraction button on the CarryMap Builder toolbar.

Or, open the dropdown CarryMap Builder menu and select Customize map extraction .

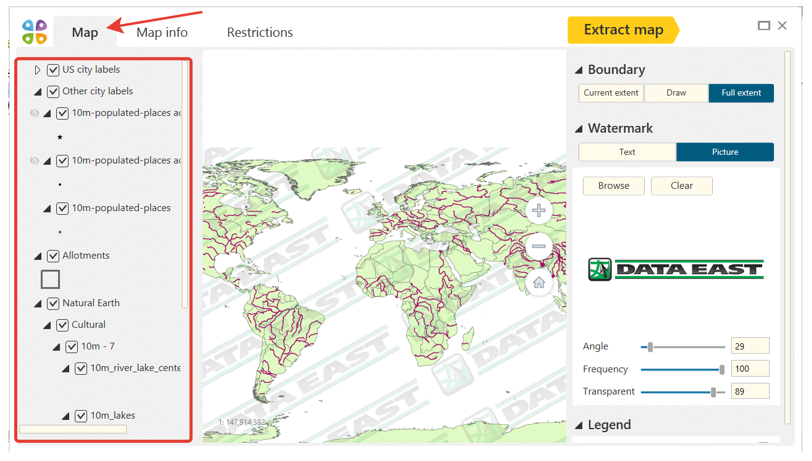

In the Map section in the left part of the window the list of layers of the current ArcMap document will be shown.

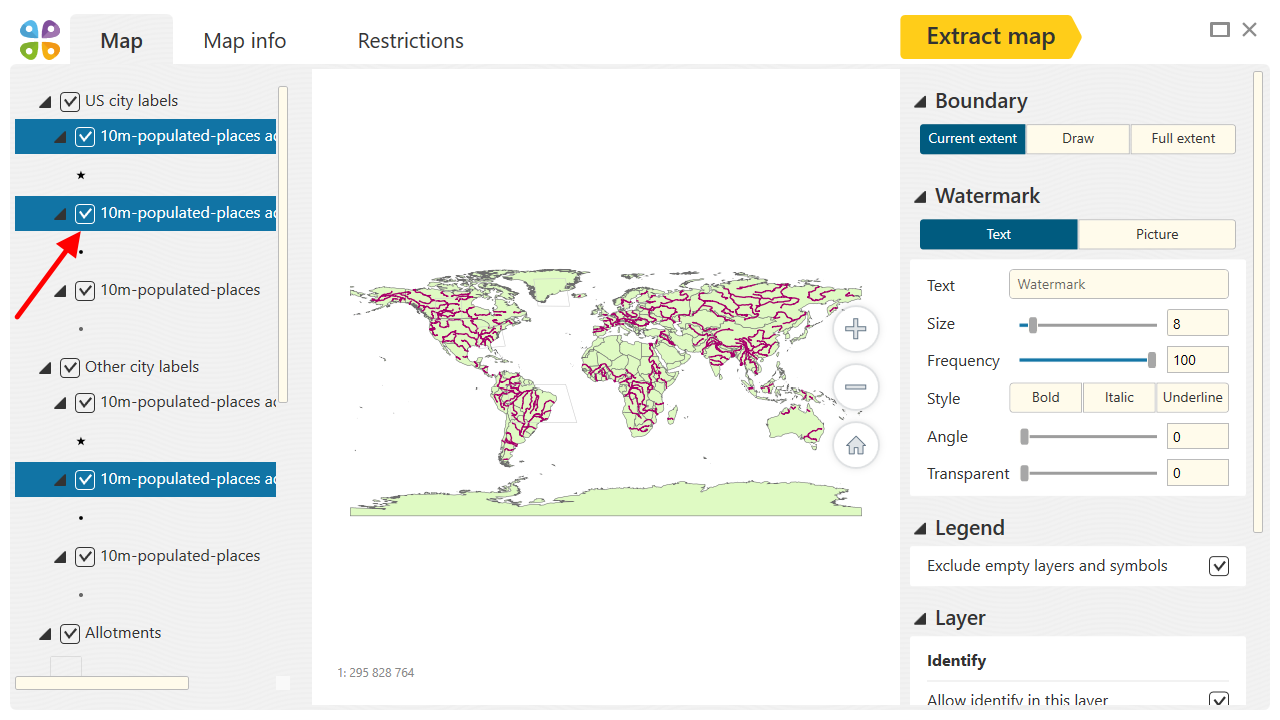

To add or to exclude one or multiple layers from the extraction, select them in the Customize map extraction tool dialog and check/uncheck the box near the required layer name.

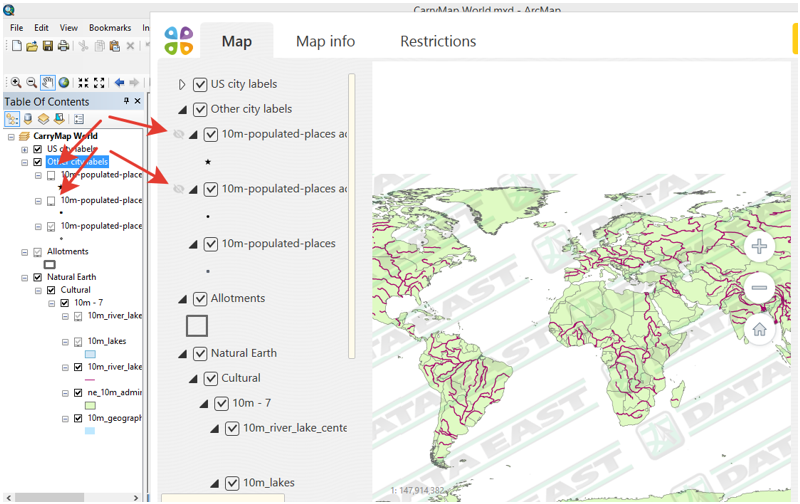

By default the layers visibility set in ArcMap will be saved in CarryMap Builder. The invisible layer that has been added to extraction will be marked as in the map legend.
