Extract by selected polygon layer
The Extract by selected polygon layer geoprocessing tool is provided to extract ArcMap map documents to CMF2 format by selected polygons.
|

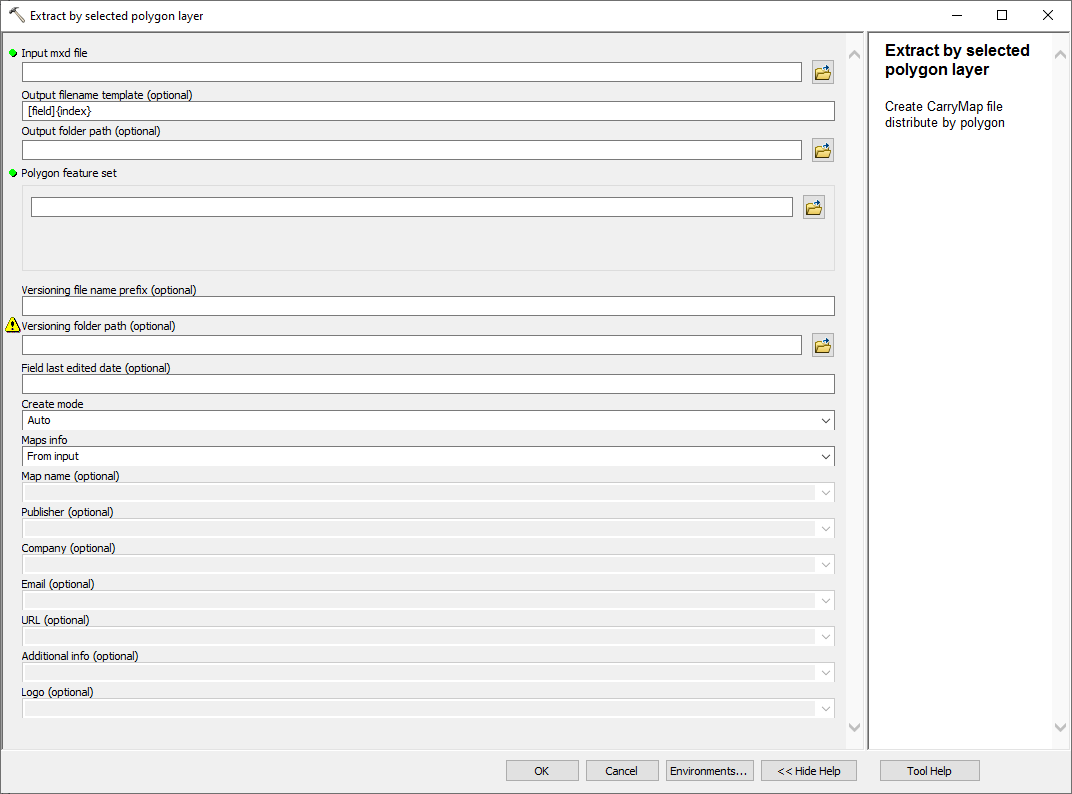

To start extraction, specify the following parameters:
- Input mxd file – name of the input mxd file.
- Output file name template - template to create names of the output CMF2 files.
- Output folder path - name and location of the folder with output CMF2 files.
- Polygon feature set – name of the polygon layer used to divide the project to separate CMF2 maps.

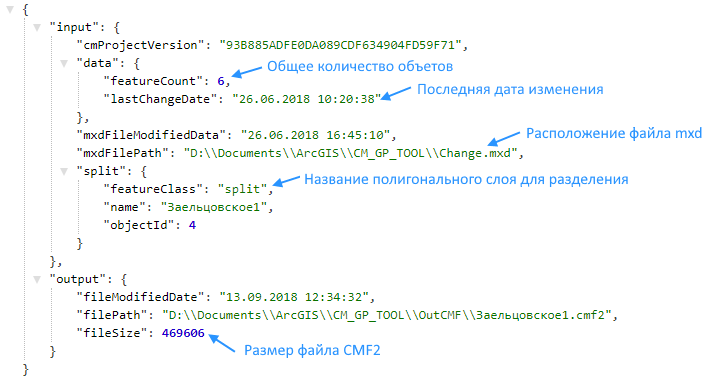

- Versioning file name prefix - prefix for the json file name for all output CMF2 maps.
- Output CMF2 file - name and location of the output CMF2 file.
- Versioning file path - name and location of the output json file.
|
- Field last editing - name of the field to record the change date of the output CMF2 file (the default name is Edit tracking).
- Create mode - mode of the CMF2 files creation.
- Maps info - template of the information source for output CMF2 maps.
- Map name - field for information about the name of the output CMF2 map.
- Publisher - field for information about the author of the output CMF2 map.
- Company - field for information about the company name in the output CMF2 map.
- Email - field for information about the email in the output CMF2 map.
- URL - field for information about the website address in the output CMF2 map.
- Additional info - field for additional information about the output CMF2 map.
- Logo - field for embedding the logo in the information about the output CMF2 map.
After specifying all parameters press OK .
Note that geoprocessing tools are available for users with Corporate or Global CarryMap Builder license only.
