About user identification template

To create user identification template, run Customize identification templates tool.

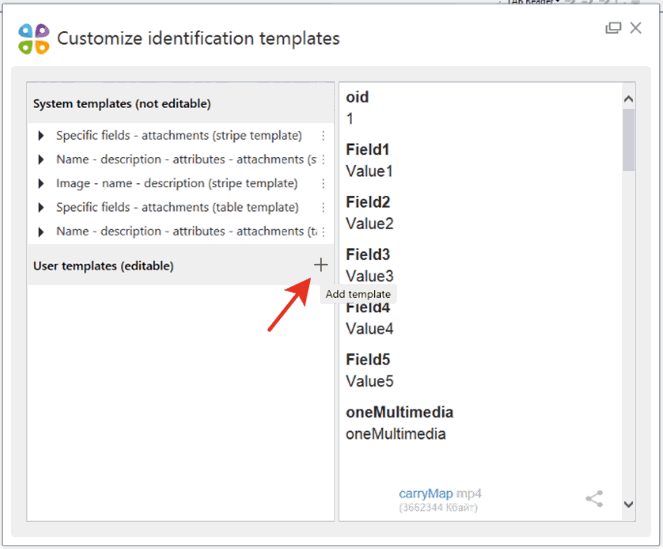

To create new template, press .

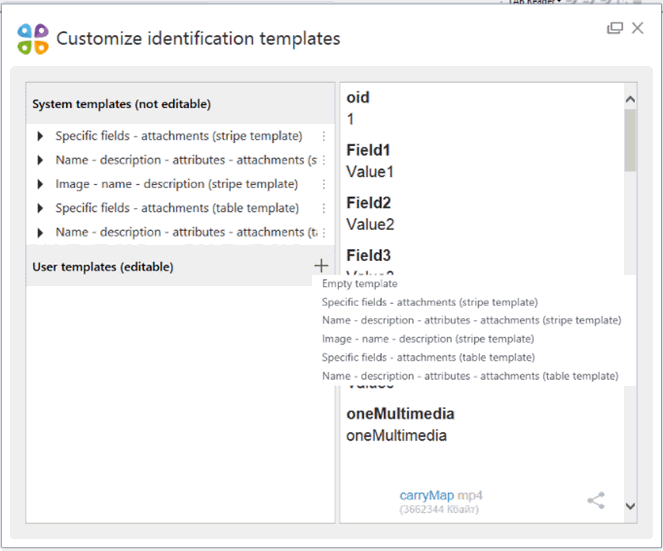

In the dropdown list select the empty template or template with predefined set of stripes.

Note that to any user template, either empty or with predefined set of stripes, you can add as many stripes as needed.

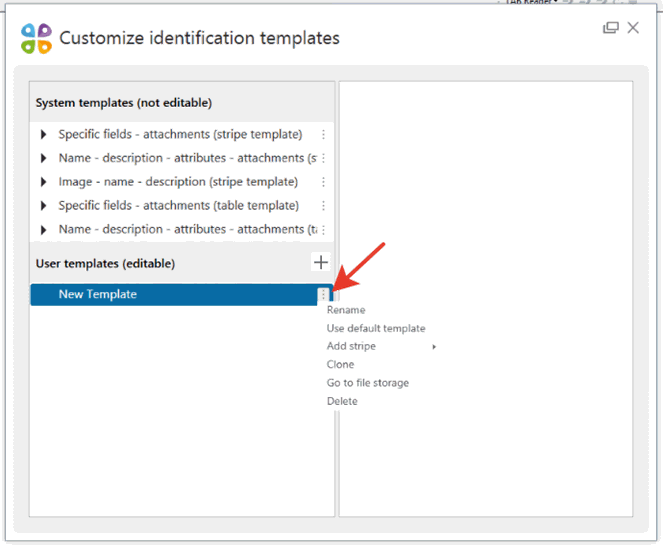

With created template you will be able to do the following:

– Rename.

– Use default template – selected template will be applied as the default template when opening other ArcGIS Pro projects.

– Add stripes – adding other stripes (attachments, HTML code, description), you can make your identification cards more informative.

– Clone – make copy of selected template with other name.

– Delete .

To create new stripe in user template, run Customize identification templates tool.

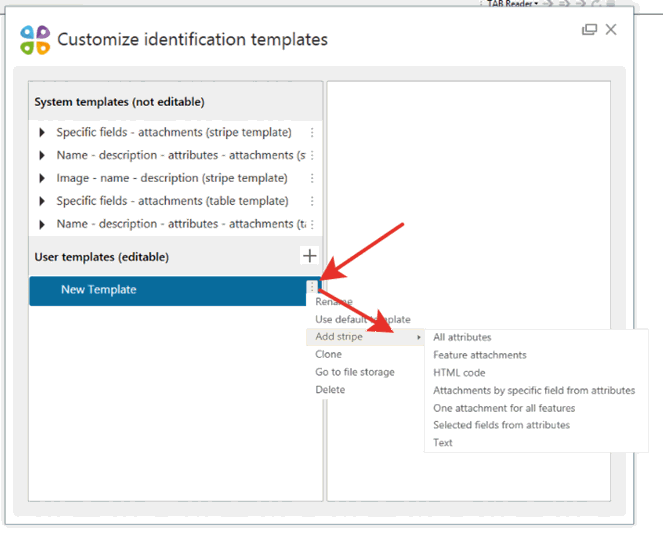

In the appeared dialog select user template to which you want to add new stripe, press three dots icon and then press Add stripe .

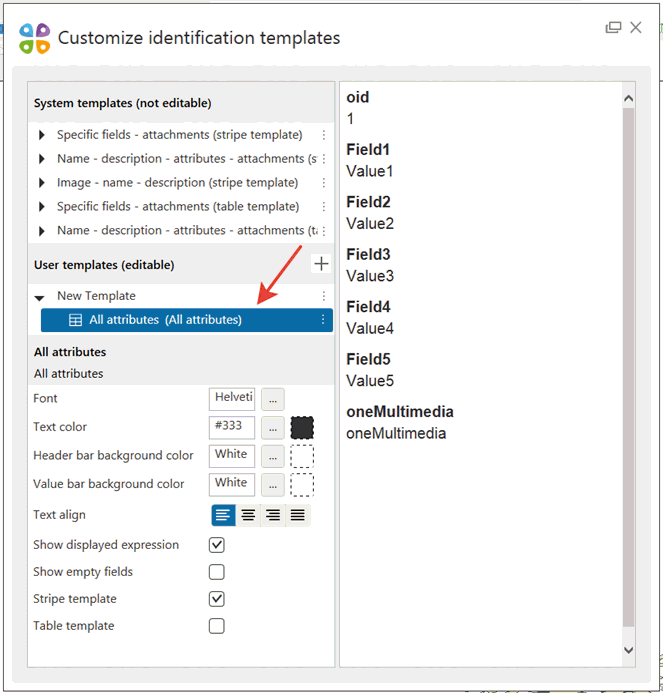

Select the needed stripe and it will be added to the template.

To create template group, run Customize identification templates tool.

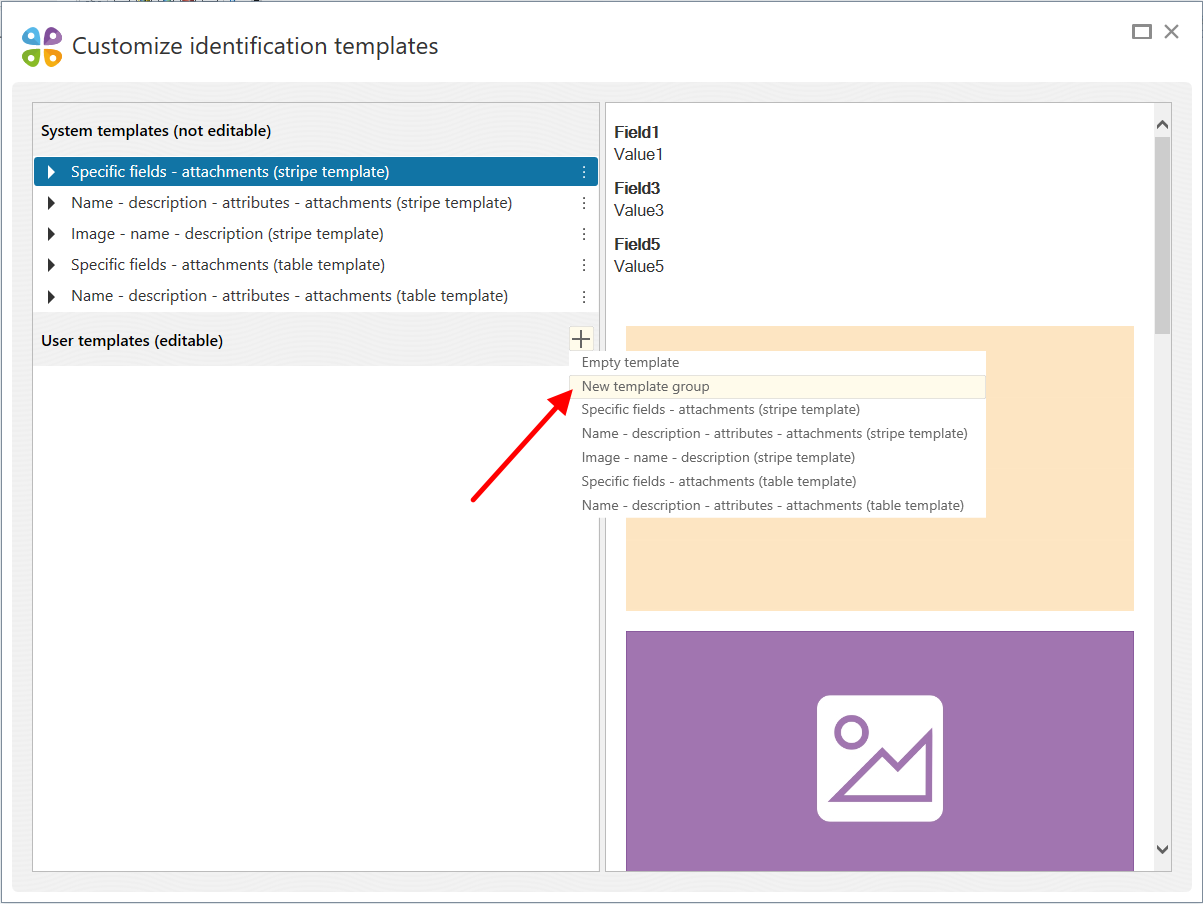

Press button. In the dropdown list select New template group .

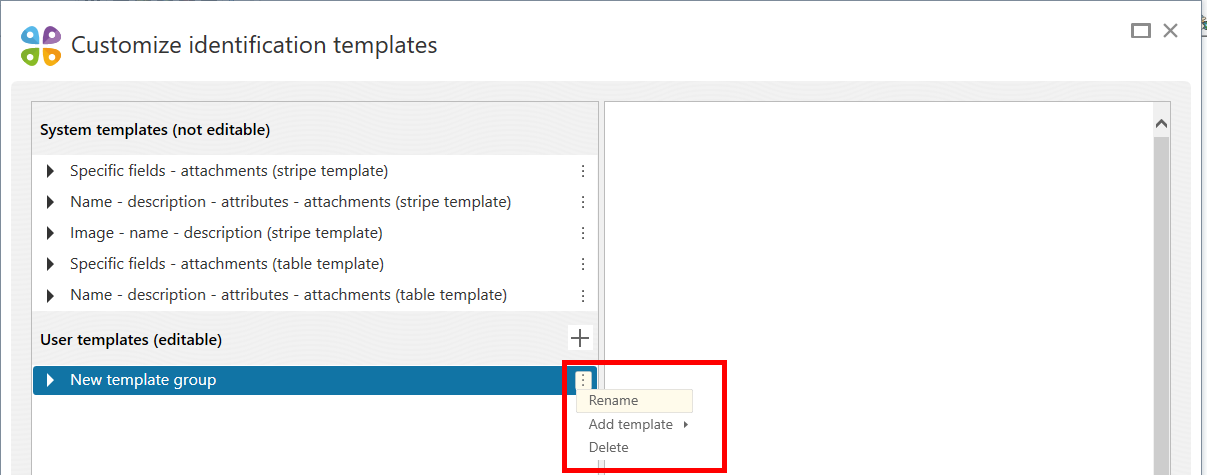

Operations available for the created template group are as follow:

– Rename.

– Add template – create an empty template or template with predefined set of stripes.

– Delete .

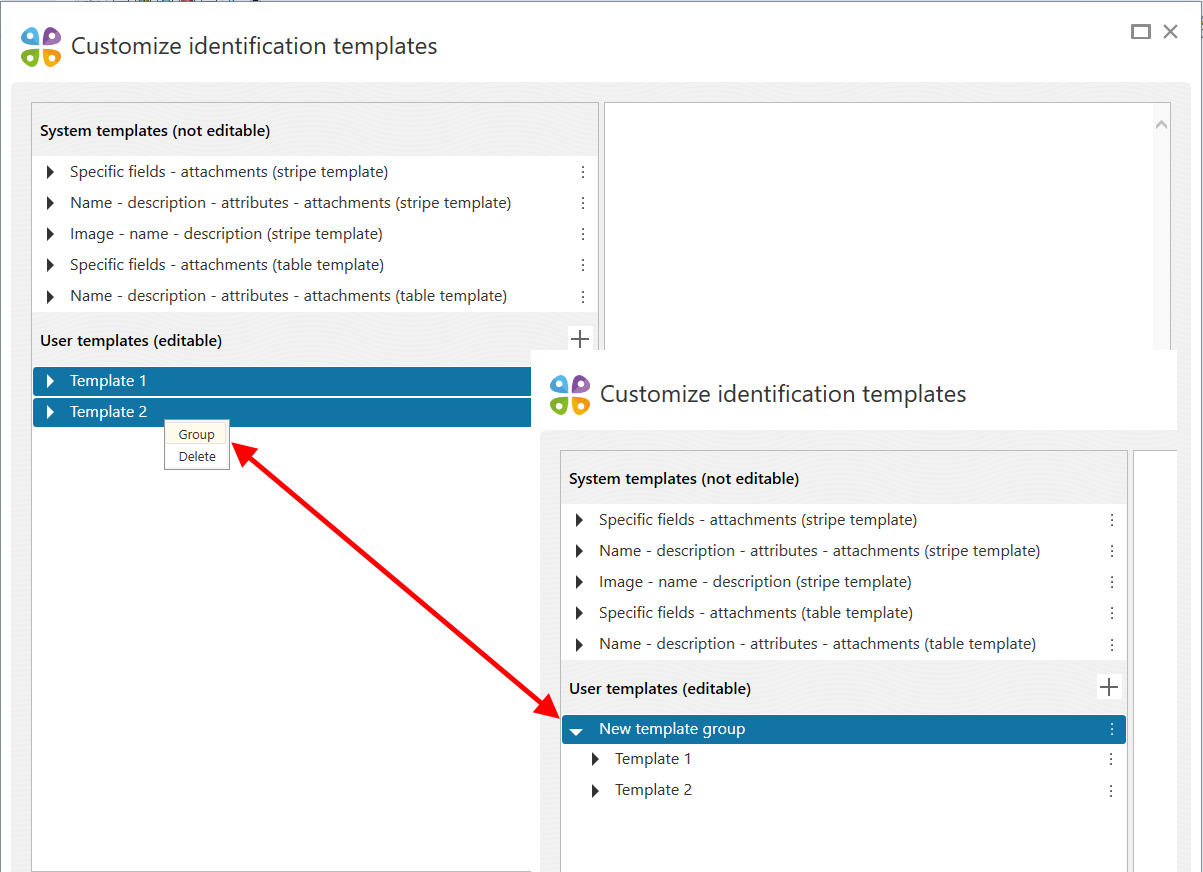

To create the group from the existing user templates, select the required templates in the list and click Group in the context menu.

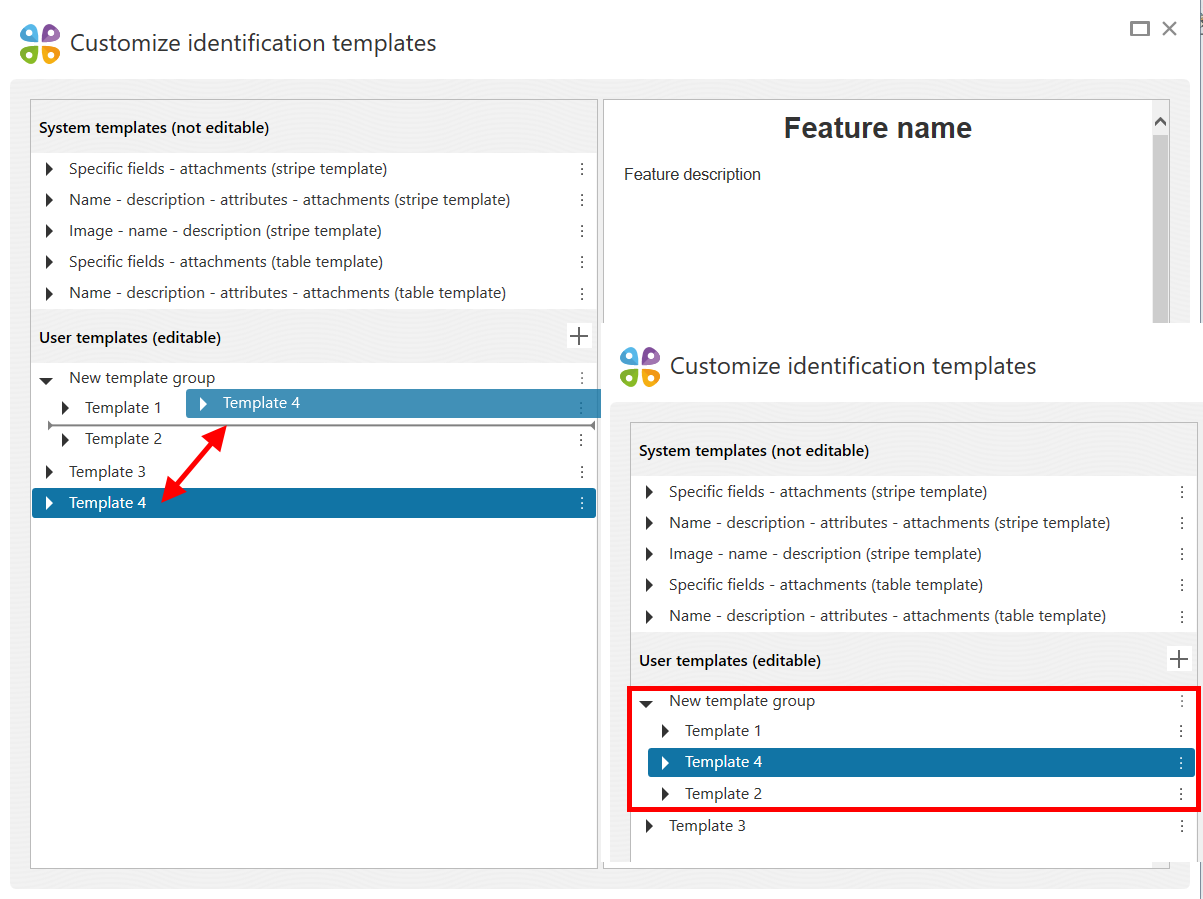

To move templates to the existing template group, select them in the list and then move to the required group.
