Map window

When selecting a map or a project (see Creating and opening project ) in one of the sections of the start page of the application, you automatically get to the Map window .

In the map window, you can work with the map and project data – adding additional layers, creating new features, determining location, recording tracks, searching for features, measuring distances and areas, etc.

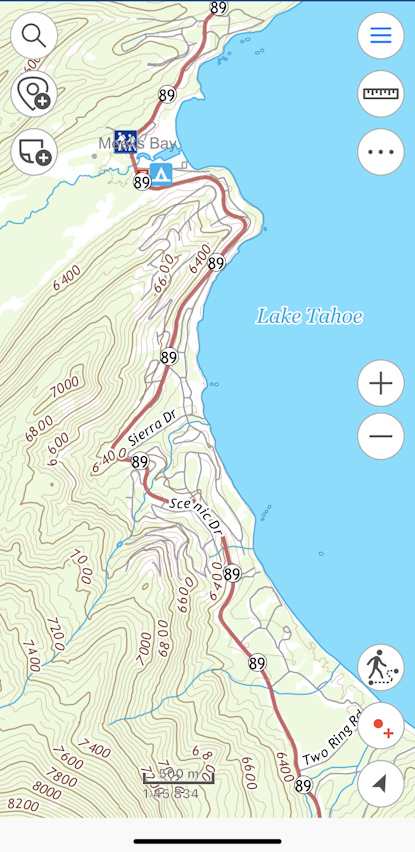

Overview of the map window buttons:

Main menu – provides options to make settings of the app without leaving the current project, to add layers and maps to project, to manage layers visibility and to perform operations with layers (zoom in/out, delete, view legend, view layer properties, etc.).

Search on map, go to coordinates – performs text and numeric search, goes to coordinates in DD and DMS formats.

Measure – measures on the map.

Create object – creates objects on the map (points, polylines, polygons).

Marks on map – creates graphic marks on the map.

Record track – records and saves GPS tracks.

Save a point – creates point with a single tap.

My location – defines current location of the user.

Additional tools for work with map – saving map extent as bookmark or PDF document.

Change map scale – zooms in/out the map.

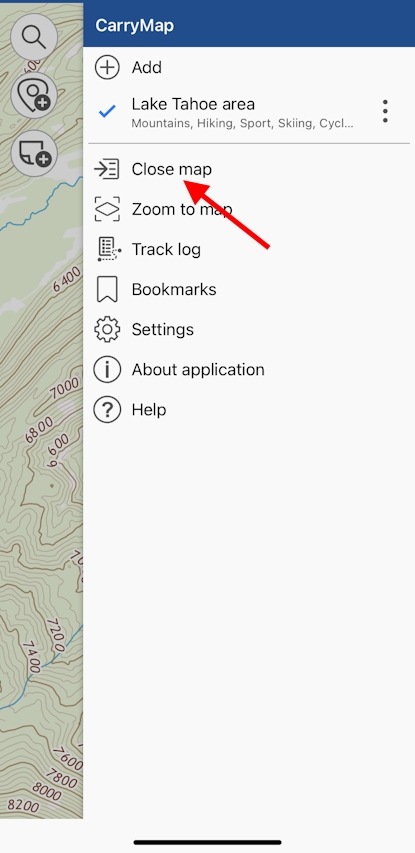

To exit the map window and go to the Map Catalog window, click Close Map button in the Main Menu.
