Creating new features

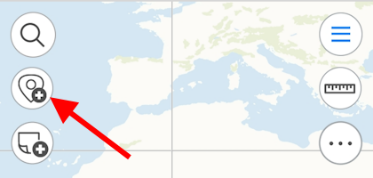

To create new feature on the map, tap the Create feature button.
|
In the appeared menu select the feature type: point, polyline, or polygon.
|
Specify the feature geometry. To do so, consequentially tap the required places on your map.
|
To delete the needless point on the map, tap it. To add the new point, pull the edge in the needed place and the point will be added there. To change location of the created point, tap and hold it, then drag it to the new place on the map.
Now select the layer where you want to create the new feature. To do so, in the feature card tap the arrow near the Save to option.
|
In the appeared window you can either select the layer from the currently opened project, or select the previously created layer in the application, or create the new layer.
To select the layer from the existing data, press Select from data and select the required layer from the list of GPKG layers stored in the application.
|
To create the new layer, press Create new .
|
The layer will be automatically created with the default name, but you can rename it, to do so, enter the new name using the keyboard.
|

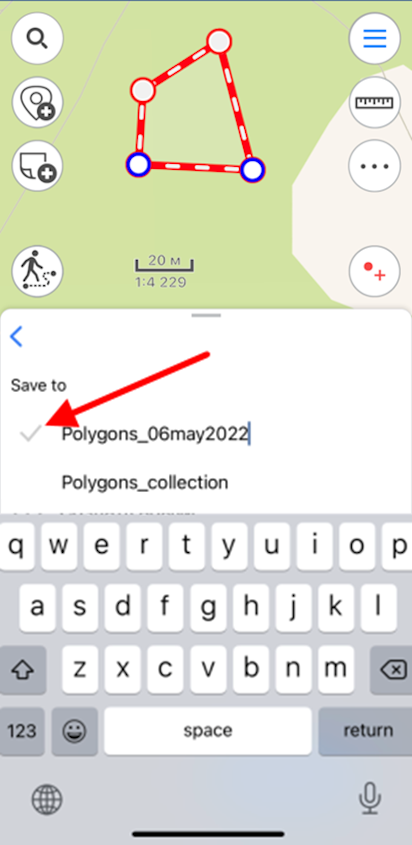

To confirm the layer name, tap the tick mark near the layer or tap Enter on the keyboard.
If there are previously added layers in the project, then to create the feature you need to select the required layer from the list. The selected layer will be marked with the check sign.
|
To select another layer, press its name in the list and it will be marked with the blue check sign.
|
To go to changing parameters of the layer settings, press
. See
Changing layer settings
section for more details about changing layer settings.

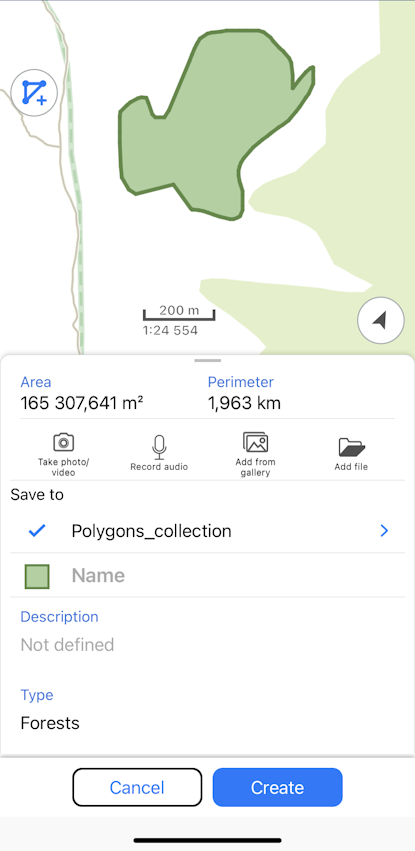

To go to saving the created feature and filling in the fields, press the back arrow.
|

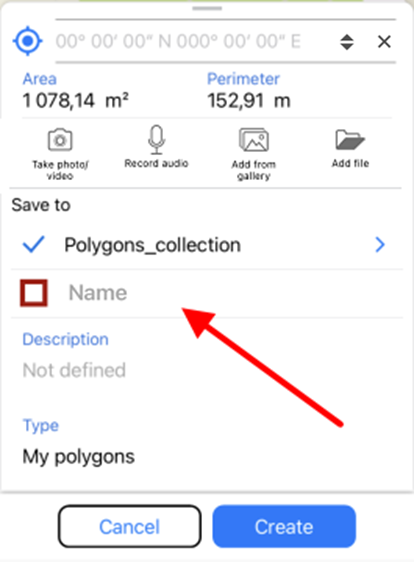

To fill in the Name and Description fields, tap the required line and enter the text.
|
To complete creation of the feature, press Create . The feature will be saved. If you need to cancel this operation during the feature creation process, press Cancel .
Creating features using freehand line
To create a new polyline or polygon feature on the map by drawing the freehand line, go to Application settings of the map menu. In the Method of creating polylines and polygons section select Freehand line .
Tap the Create feature button.
|
|
In the appeared menu select the feature type: polyline or polygon.
|
Draw the feature on the map.
|
To complete creation of the feature, press Create . The feature will be saved. If you need to cancel this operation during the feature creation process, press Cancel .
